Through this option you take backup of the database.

Generally the backup file location is C:\FusionRetail6\Backup. The backup file is a zip file having database backup and other important files.

For example : in this backup file RanceLabDBBack724200980336.zip

•the first part RanceLabDBBack is constant and

•the second part 724200980336 is date and time.

The backup ZIP file contains the following folders

•Format Files: This folder contains the format files used in the printing the documents and bar code labels.

•Layout: This folder contains the saved layout files. These files are used at the report to save and load the user views.

•Photo: This folder contains all the photo's used in product master and customer master. Also the logo files and default photo files are stored here.

And following files

•Error.log: This file contains the error generated byRanceLab.

•RanceLabDemoDB.bak: This file is the DATABASE Backup in sql backup format.

•RanceLab.exe.config: This file defines the configuration such as database server name and database name.

•Message.log: This log file contains the message generated byRanceLab.

•Sync.log: This is the synchronization log contains the messages related to multi location data transfer.

Key Information

•This is a FOLDER zip format which can be opened by WinRAR or 7Zip.

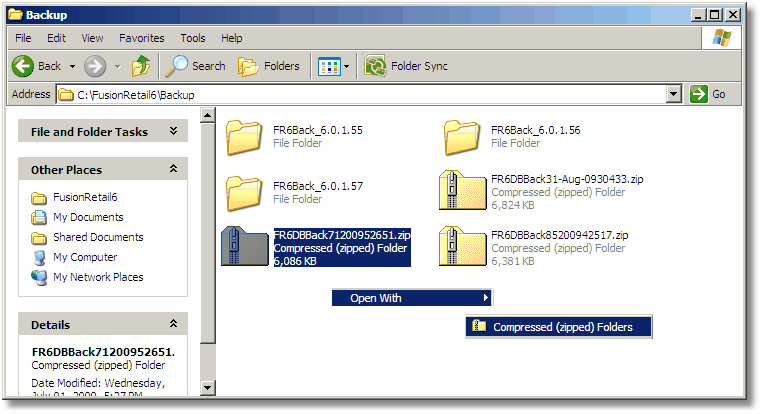

•You can also open this using right click on the icon and choosing Open With > Compressed (Zipped) Folders

There are two ways to open the backup ZIP file.

1.Use WinRAR or 7 ZIP (Free) to open the file.

2.Use the Windows > Right Click > Open with Compressed (zipped) Folder function.

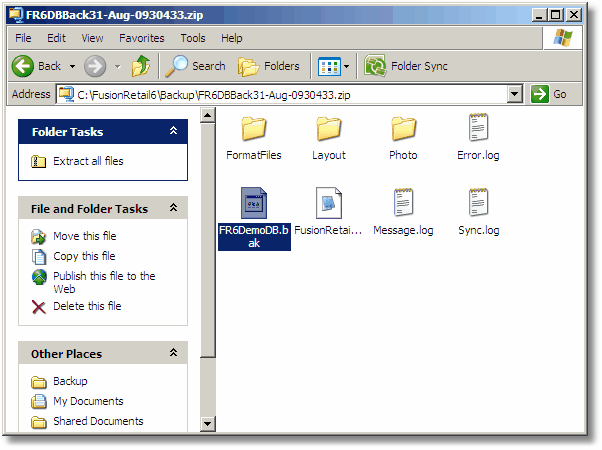

You will see the following folders

Use normal copy and paste command to get the desired file.

Backup Database
