Integration of KOT Buzzer Device

Every time after print a KOT the Buzzer Device sounds BEEP that helps to aware the kitchen staffs about each KOT printings.
.

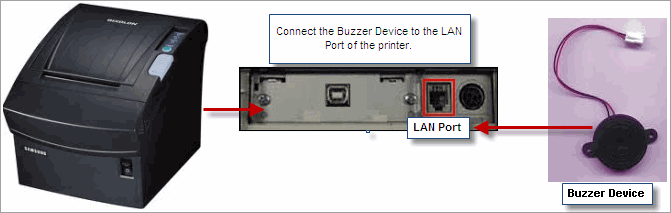

Step1: Connect the Buzzer Device to the LAN Port of the printer as shown in the picture below:
Buzzer Device
.
Step 2: Set the Buzzer Command:
  1. From main go to the Station Setup (T > A > S)
  2. Select the station name at field “Station Name’ by pressing ALT+S
  3. Go to the KOT Printer field and press CTRL+N to create the new if KOT Printer does not exist
  4. OR Press ALT+Enter Key to modify the setup if KOT Printer exists in the list
  5. Set Buzzer Command at field “KOT Buzzer Command” like 27,112,0,255,5Buzzer Command
6. Press ALT+S to save the changes
7. Now, after the KOT print Buzzer will sound BEAP every time.
.
List of the Buzzer Commands:

Printer

Model

Code

BIXOLON

SRP-275

27,112,48,55,121

BIXOLON

SRP-280

27,112,0,64,240

BIXOLON

SRP-350

27,112,0,50,250

BIXOLON

SRP-350P

27,112,48,55,121

AXIOHM

A715/A756/A794

27,112,0,48,251 OR 27,112,1,49,251

DELL

T200

7

EPSON

TM-T20

27,112,32,25

EPSON

MP1PD

27,112,0,25,250

EPSON

TM-T60

27,112,32,35

EPSON

TM-T70

27,112,48,55,121

EPSON

TM-T81

27,112,0,25,250

EPSON

TM-T85

27,112,0,25,250

EPSON

TM-T80P

27,112,0,25,250

EPSON

TM-T88

27,112,0,25,250

EPSON

TM-T88II

27,112,0,25,250

EPSON

TM-T88IIP

27,112,48,55,121

EPSON

T-88iii

27,112,0,25,250

EPSON

T88iiiP

27,112,0,64,240

EPSON

TM-88IV

27,112,48,55,121

EPSON

TM-88V

27,112,48,55,121

EPSON

TM-90

27,112,0,25,250

EPSON

M115A

27,112,0,25,250

EPSON

M129C

27,112,0,64,240

EPSON

M188A

27,112,0,25,250

EPSON

M188B/M188D

27,112,48,55,121

EPSON

M192C

27,112,0,64,240

EPSON

M192H

27,112,0,64,240

EPSON

T200

27,112,0,25,250

EPSON

TM-200

27,112,0,64,240 OR 27,112,0,25,250

EPSON

TM-U200B

27,112,0,25,250

EPSON

 TM-U200D

27,112,0,64,240

EPSON

TM-U210PD/TM-210D

27,112,0,25,250

EPSON

TM-220

27,112,0,64,240 OR 27,112,0,25,250

EPSON

TM-U220

27,112,0,64,240 OR 27,112,0,25,250

EPSON

TM-U220A/TM-U220PD

27,112,0,25,250 OR 27,112

EPSON

TM-U220B/TM-U220PD

27,112,0,25,250

EPSON

TM-U220D/TM-U220PD

27,112,0,25,250

EPSON

TM-U295

27,112,48,55,121

EPSON

ADP 300

27,112,0,25,250

EPSON

TM-300D

27,112,0,25,250

EPSON

LX-300+

27,112,0,25,250 OR 27,112,48,55,121

EPSON

TM-U300PC/TM-U300PD

27,112,0,25,250

EPSON

TM-U325D

27,112,0,25,250

EPSON

TM-U375

27,112,0,25,250

EPSON

ECP-500

27,112,48,55,121

EPSON

M665A

27,112,48,55,121

EPSON

TM-T883P

27,112,0,50,250

EPSON

TM-U950P

27,112,0,50,250

EPSON

TM-H5000II

27,113,0,25,250 OR 27,25,247

EPSON

TM-H6000

27,112,48,55,121

EPSON

TM-J7100

27,112,48,55,121

EPSON

fp-350

27,112,0,48,251

EPSON

fp-410

27,112,1,49,251

HP

A799-C40W

27,112,0,8,8

POSIFLEX

CR-200

27,112,80,25,250 OR 27,112,0,25,250

POSIFLEX

AURA 5600/AURA 8000

27,112,80,25,250 OR 27,112,0,25,250

POSIFLEX

PP6000/PP7000/PP8000

 27,112,0,25,250

SAMSUNG

STP 131

27,112,0,48,50

SAMSUNG

SRP 220

27,112,48,55,121

SAMSUNG

SRP 270

27,112,0,25,250 OR 27,112,0,60,240

SAMSUNG

SRP 270A

27,112,0,64,240

SAMSUNG

SRP-275/SRP-275AP/SRP-275C

27,112,48,55,121

SAMSUNG

SRP 350

27,110,0,25,250

SAMSUNG

SRP 350T

27,112,0,50,250

STAR

ALL?

27,7,11,55,7

STAR

TSP 100

7

STAR

TSP 100IIU

27,7,11,55,7

STAR

SP200/SP200-2/SP212

27,7,11,55,7

STAR

TSP 200

27,7,11,55,7

STAR

SP500

27,7,11,55,7 OR 27,122,49,7

STAR

SP512

27,122,49,7

STAR

SP550II

27,7,10,50,7

STAR

TSP-600

7 OR 27,7,10,50,7

STAR

TSP-650

7 OR 27,7,10,50,7 OR 27,7,11,55,7

STAR

TSP-700

27,07,11,55,07

STAR

SP2000

27,122,49,7

STAR MICRONICS

TSP 650

27,112,0,48

STAR MICRONICS

DP 8340FM

27,7,11,55,7

TEC

RKP300

27,112,0,100,250

TEC

TRST-A10

27,112,48,55,121

TEC

TRST-53

27,112,0,100,250

CITIZEN



2PIN = 27,112,0,50,250

5PIN = 27,112,1,50,250
